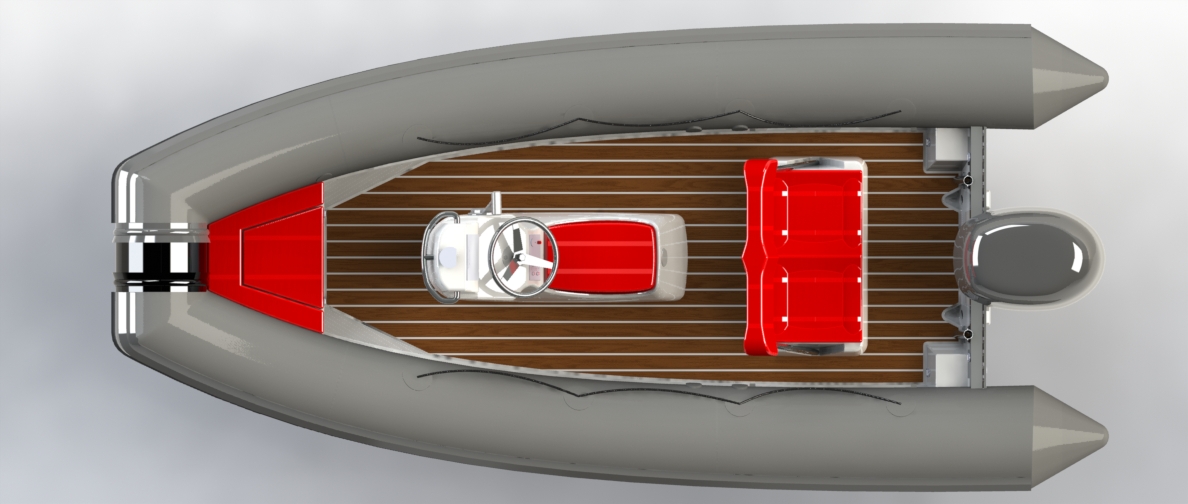

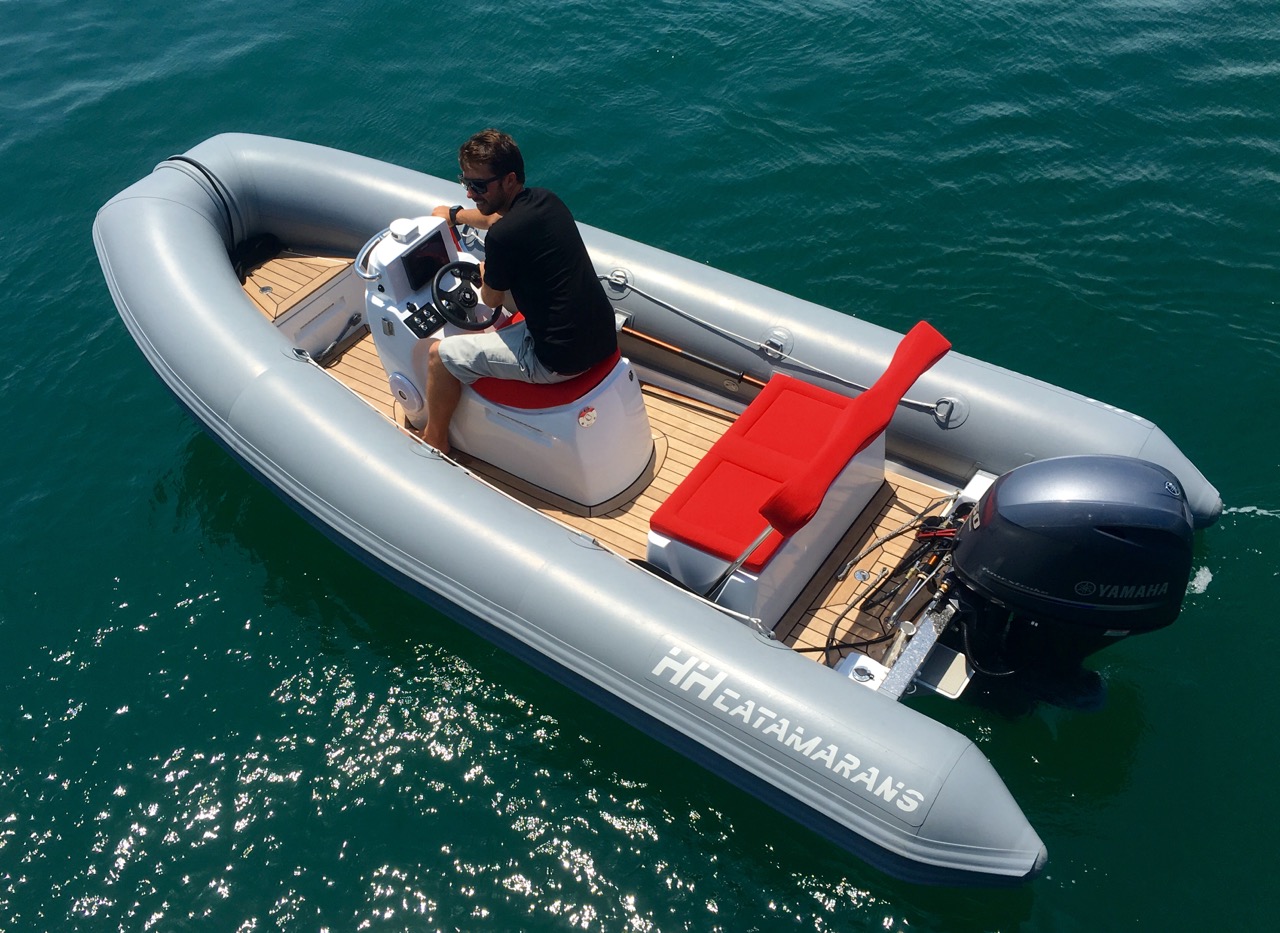

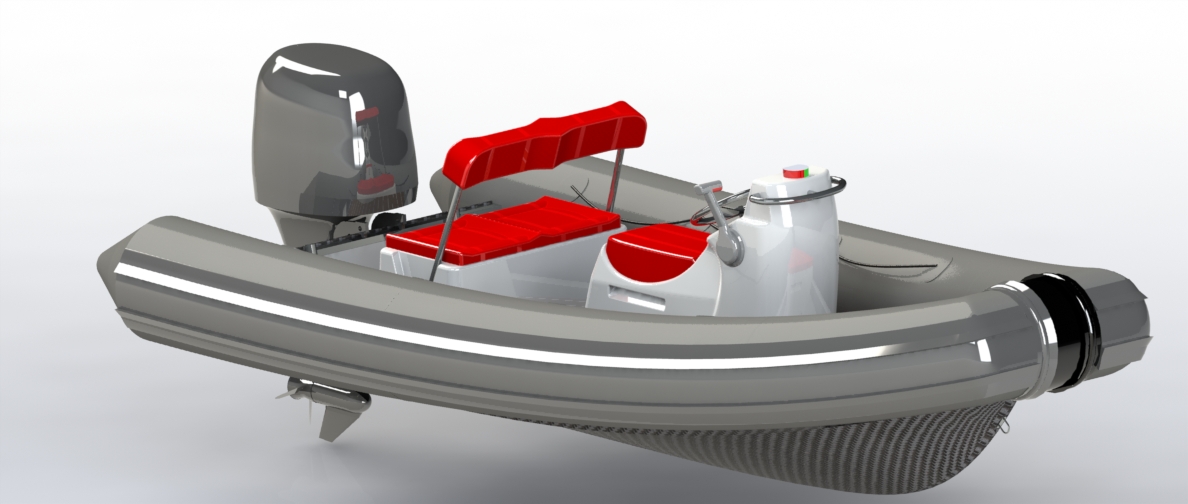

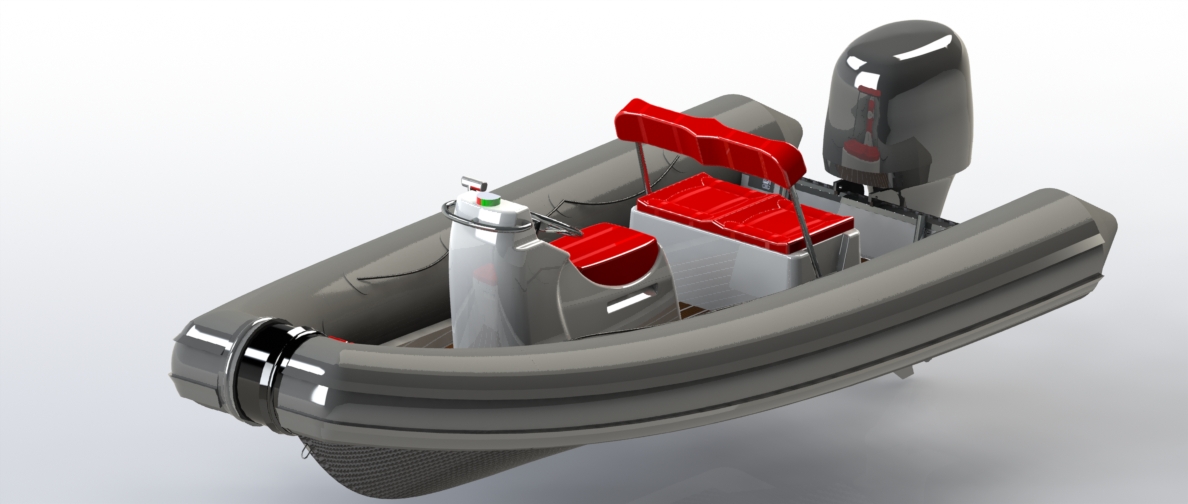

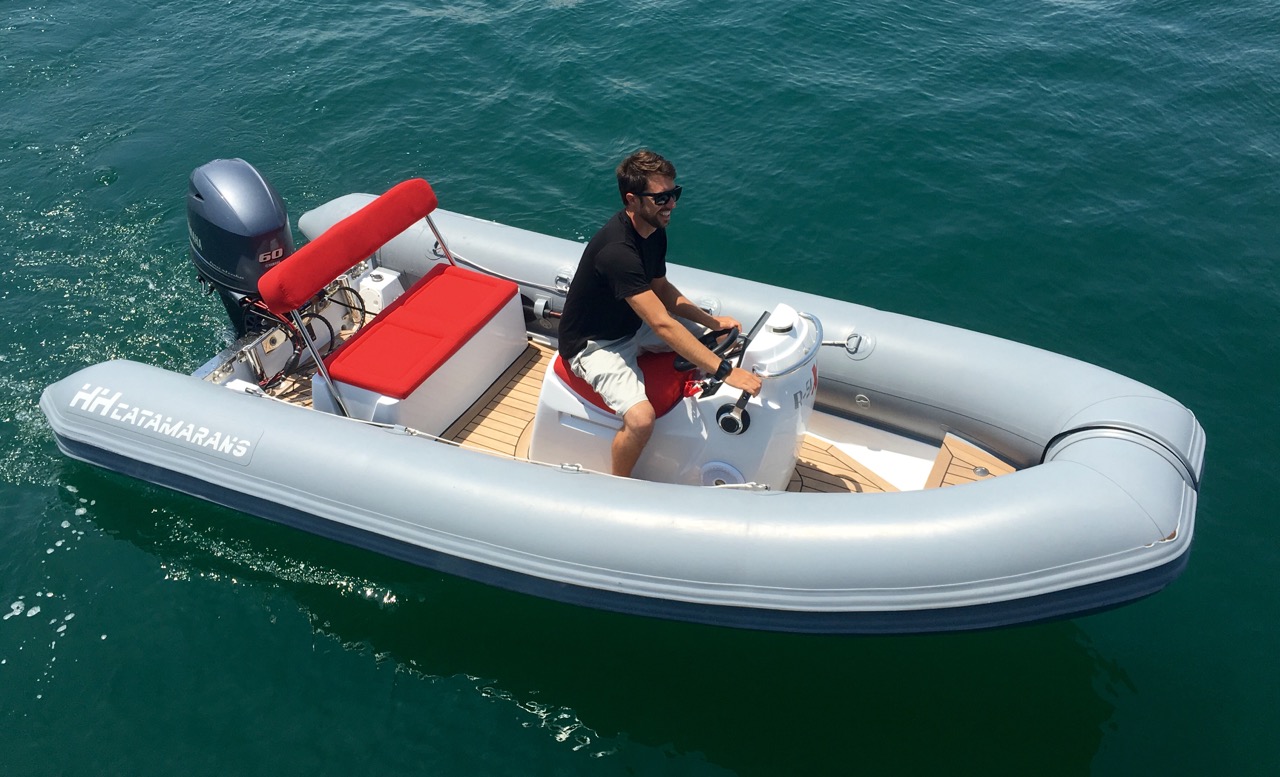

The HH420 RIB was created to perfectly compliment our line of HH Catamarans.

Designed and built to a high level of finish, this all carbon fiber RIB has been developed for performance and luxury and all contained within a lightweight package.

A deep V hull form, combined with a carbon epoxy infused structure means a smooth riding experience that delivers maximum performance with the best possible efficiency.

The interior hosts a variety of features and finishes that would not be out of place on any super-yacht. Grey Seadek flooring comes as standard with teak available as an optional extra. There is a large collection of optional extras that are available to you and are sure to suit any and all of your additional needs.



Principle DIMENSIONS

LOA: 4.2 m
BOA: 2.0 m
Number of Air Chambers: 5
Tube Diameter: 0.45 m
Weight: 215 kg
Passenger Capacity: 8
Load Capacity: 750 kg
Recommended Power: 40 - 60 hp
Max HP: 60 hp

Options and upgrades

  • Simrad GO7 7” multi-function display Simrad Totalscan all in one transducer featuring depth sounding and fish finding capabilities. NMEA2000 bridge to display engine and fuel sender read-outs on GO7 screen.

  • Entertainment Package : Fusion Black Box stereo w/ Bluetooth and NMEA2000 connection to GO7 display. Fusion 6” Marine 2-way speakers (2); USB and 3.5mm audio jack connection

  • Yamaha F40 (40Hp) Outboard

  • Yamaha F50 (50Hp) Outboard

  • Yamaha F60 (60Hp) Outboard

  • Name sticker on console and transom

  • Fishing rod holders x2

  • Locking console and aft seat

  • Full console cover & Engine top cover

  • Full boat cover

  • Bimini top

  • Upgrade to Teak floor



THE HULL

  • Deep V hull design (20° deadrise).

  • Infused carbon epoxy foam sandwich construction.

  • Additional carbon reinforcements as required in high load areas.

  • Infused carbon fiber jockey console with cushion and SS grab rail.

  • Carbon fiber aft bench seat with cushion and flip flop back rest.

  • Internal fuel tank – 60L.
    Grey Seadek floor.

  • Integrated molded bow locker/seat.

  • Keel shield beaching shoe.

  • Stainless steel mooring/towing eye.

  • Wichard folding lifting points.

The Tube

  • Hypalon inflatable buoyancy tube.

  • Large 450mm diameter tube.

  • Heavy duty rub strake.

  • Internal dyneema lifelines.

  • Paddle storage straps.

  • Five separate air chamber.



The HELM

  • Hypalon inflatable buoyancy tube.

  • Large 450mm diameter tube.

  • Heavy duty rub strake.

  • Internal dyneema lifelines.

  • Paddle storage straps.

  • Five separate air chamber.

Fitout & Accessories

  • High capacity submersible bilge pump with float switch (1100gph)

  • Sunbrella upholstery

  • 2kg Bruce anchor with 5m SS chain and 30m nylon rode

  • Foot pump
